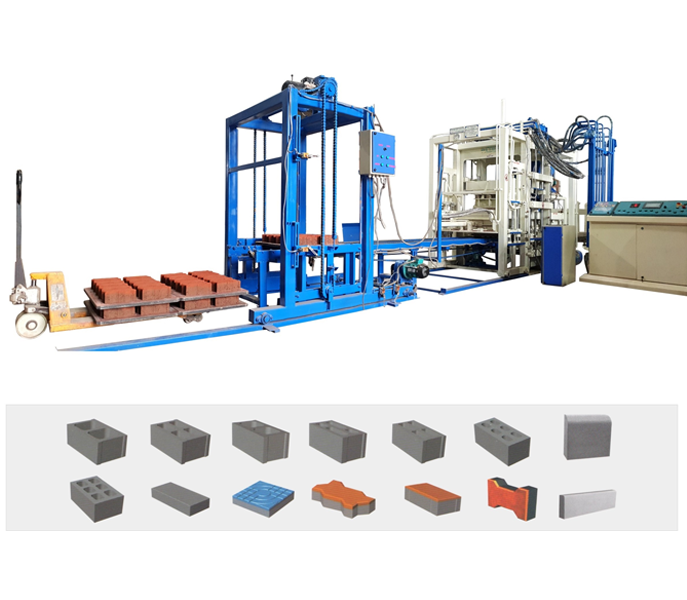

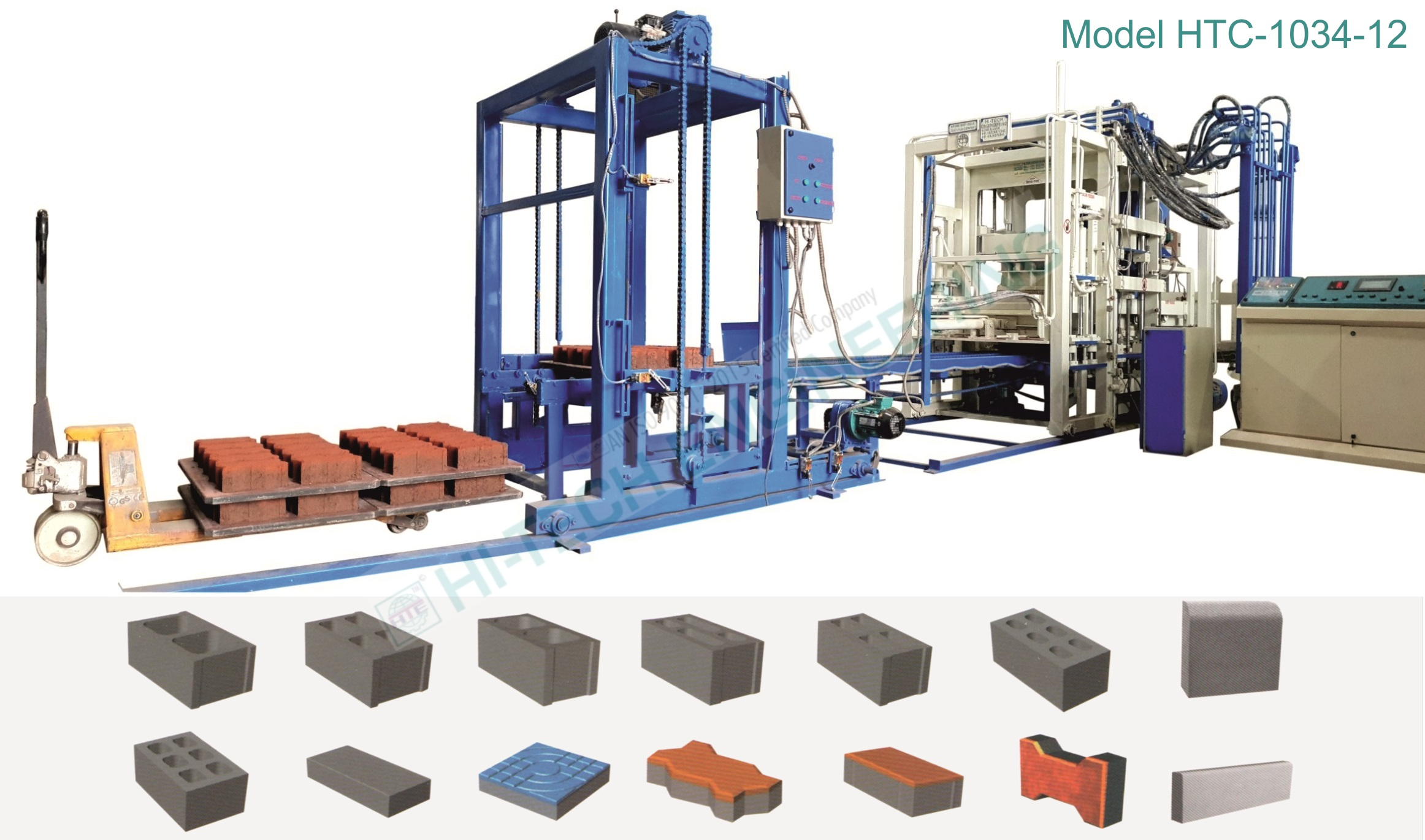

Vibro Press Machines Model HTC - 1034-12
Specifications
- Total Power Require: 61 HP, 45.75 KW, 3 Phases.
- Oil Tank Capacity: 475 Liter, Standard Company, Grade 68 No. Hydraulic Oil.
- Production Capacity per Shift 8 Hour: Color Paver- 9400 to 9600, Solid & Hollow Block- 4500 to 4800, Bricks- 17000 to 17300.
- Paver Block per Stock: 10 Block or depend on design (Design as per requirement).
- Solid & Hollow Block per Stock: 3 or 4 Block depend on size (Size As per requirement).
- Bricks per Stock: 12 Bricks, 230 X 110 X 75mm or as per requirement.
- Mould Vibro System: 15HP Mould & 2 Nos. 2HP Tamper Head
- Pallet Forward System: 1 HP.
- System Vibro, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc…
- Auto Color Feeding: Auto Double Feeder Attachment for Top Layer, Color Paver.
- Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty Roller & Blade) Powerful Worm Reduction Gear Box Transmission Unit.
- Conveyor: 2Nos, Ft 30 X Width 24 Inch X Thickness 8mm & Ft 18 X Width 18 Inch X Thickness 8mm Belt For Color, Dunlop or MRF.
- Wheelbarrow Trolley: For Shifting raw material to Pan Mixture.
- Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
- Color Pan Mixer: 1 Nos. 3 Ft. 200 Kg Capacity Heavy Duty.
- Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
- Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.
