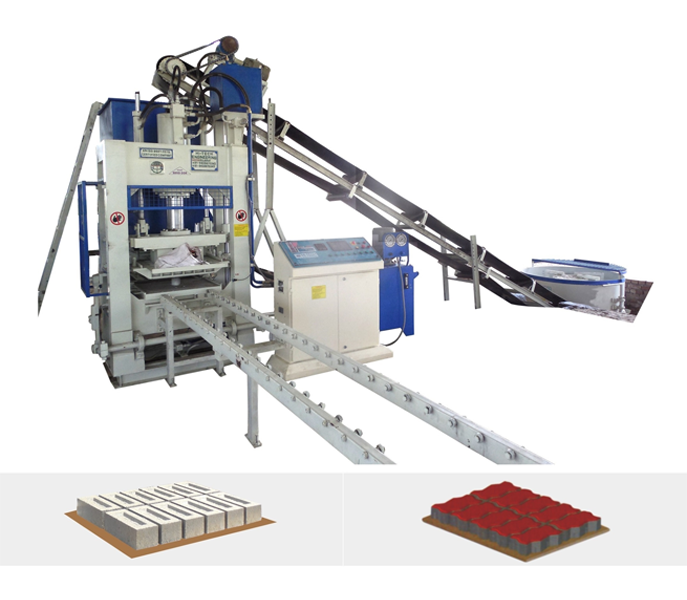

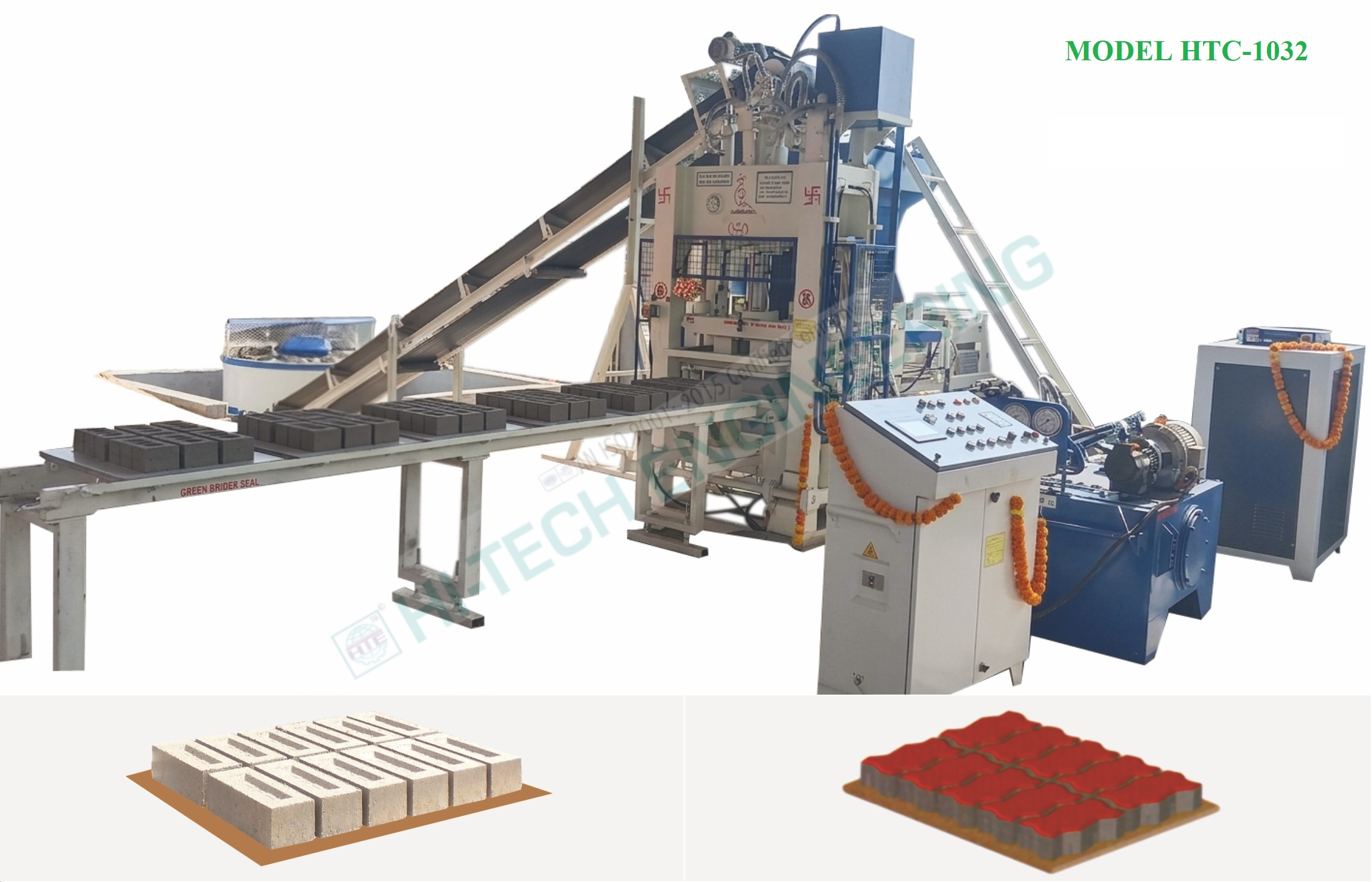

High Pressure Paver Block & Bricks Machine With Vibro Model HTC - 1032
Color Paver And Fly Ash Bricks Making Machine, AUTOMATIC PAVER MAKING MACHINE, PAVER BLOCK MAKING MACHINE IN INDIA, PAVER BLOCK MACHINE, HIGH PRESSURE PAVER BLOCK MACHINE, FLY ASH BRICKS MAKING MACHINE, FLY ASH BRICKS MAKING MACHINE MANUFACTURER, FLY ASH BRICKS MAKING MACHINE IN INDIA, HIGH PRESSURE FLY ASH BRICKS MACHINE.
Specifications
- High Pressure Tonnage: 80 MT + 2 HP Mould Vibro Pressure, German Technology.
- Total Power Require: 24 HP, 18 KW, 14.63 KW, 3 Phases.
- Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil,
- Production Capacity per Shift 8 Hour: Color Paver 3500 to 4000 / Bricks 7000 to 7500.
- Block per Stock: 3 Paver Block or depend on design / 4 Bricks, 230 X 110 X 75mm or as per requirement.
- System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...
- Auto Color Feeding: Auto Double Feeder Attachment for Top Layer, Color Paver.
- Pan Mixer: 5 Ft. 400 Kg Capacity, Heavy Duty (Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.
- Conveyor: Ft 18 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.
- Color Mixer (Drum Type): Color Mixer for Top Layer of Paver Blocks.
- Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
- Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
- Note: Specifications are subject to change for improvement.
