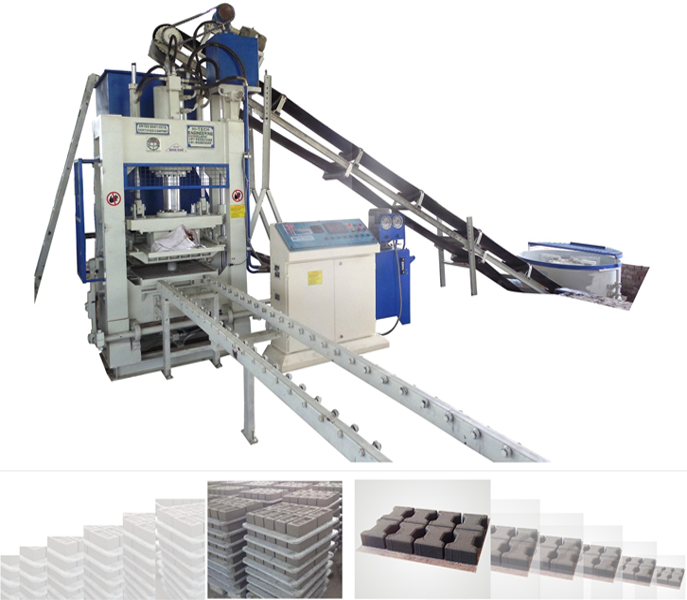

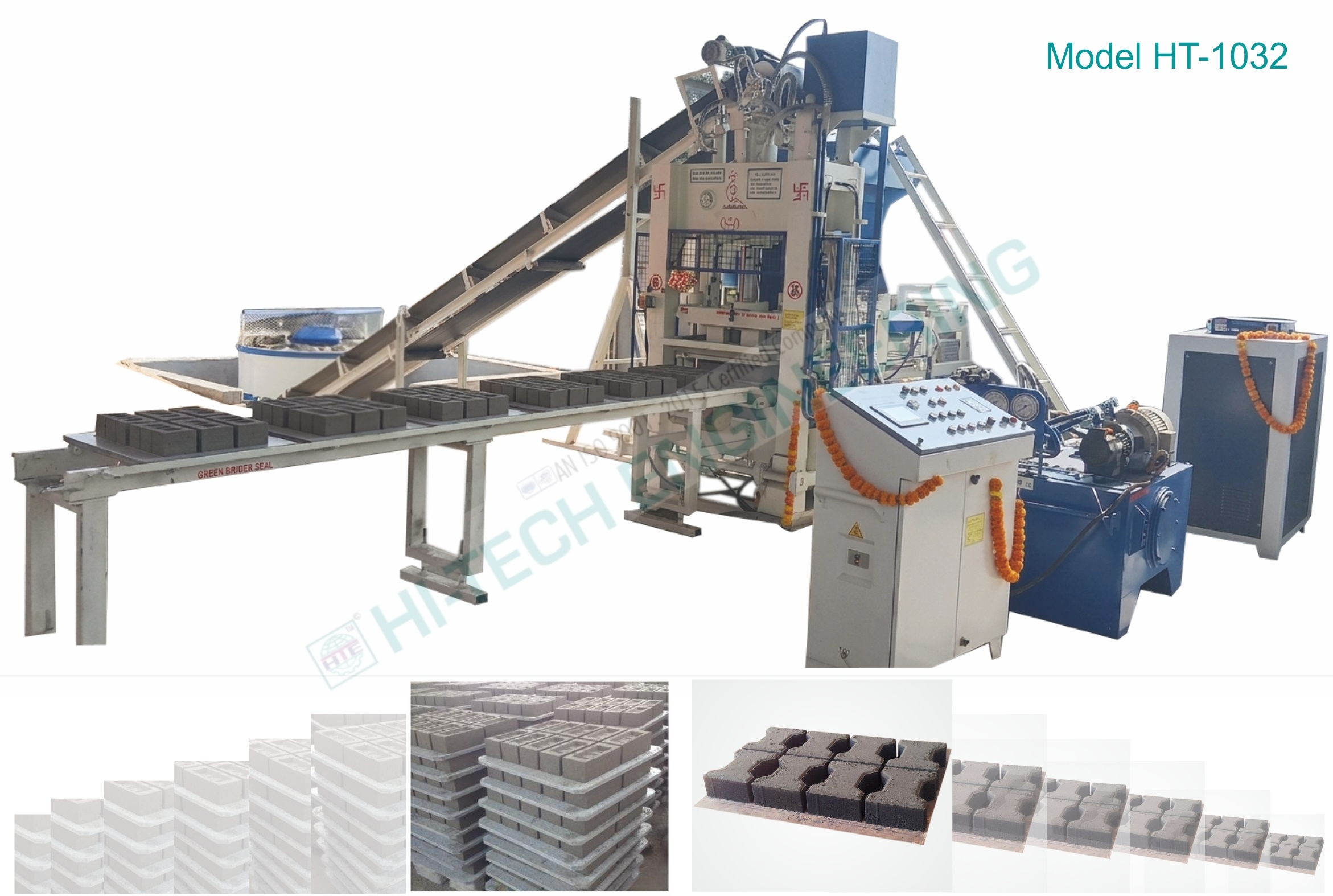

Fly Ash Brick Making Machine Model HT - 1032
Fly-Ash Bricks Making Machine, Cement Bricks Making Machine, Concrete Brick Making Machine, AUTOMATIC BRICK MAKING MACHINE, CONCRETE BRICK MAKING MACHINE, FLY ASH BRICK MAKING MACHINE, FLY ASH BRICK MAKING PLANT, FULLY AUTOMATIC CEMENT BRICK MAKING MACHINE, SOLID BRICK MAKING MACHINE.
Specifications
- High Pressure Tonnage: 100 MT + 2 HP Mould Vibro Pressure, German Technology.
- Total Power Require: 28.5 HP, 21.38 KW, 3 Phases.
- Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil,
- Production Capacity per Shift 8 Hour: Bricks 10500 to 11000.
- Bricks per Stock: 6 Bricks, 230 X 110 X 75mm or as per requirement.
- System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...
- Pan Mixer: 6 Ft 600 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit.
- Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt.
- Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
- Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
- Note: Specifications are subject to change for improvement.
