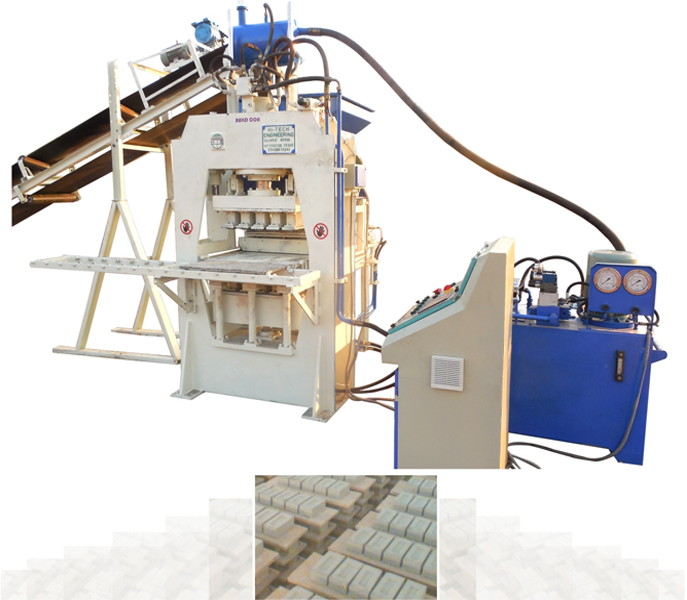

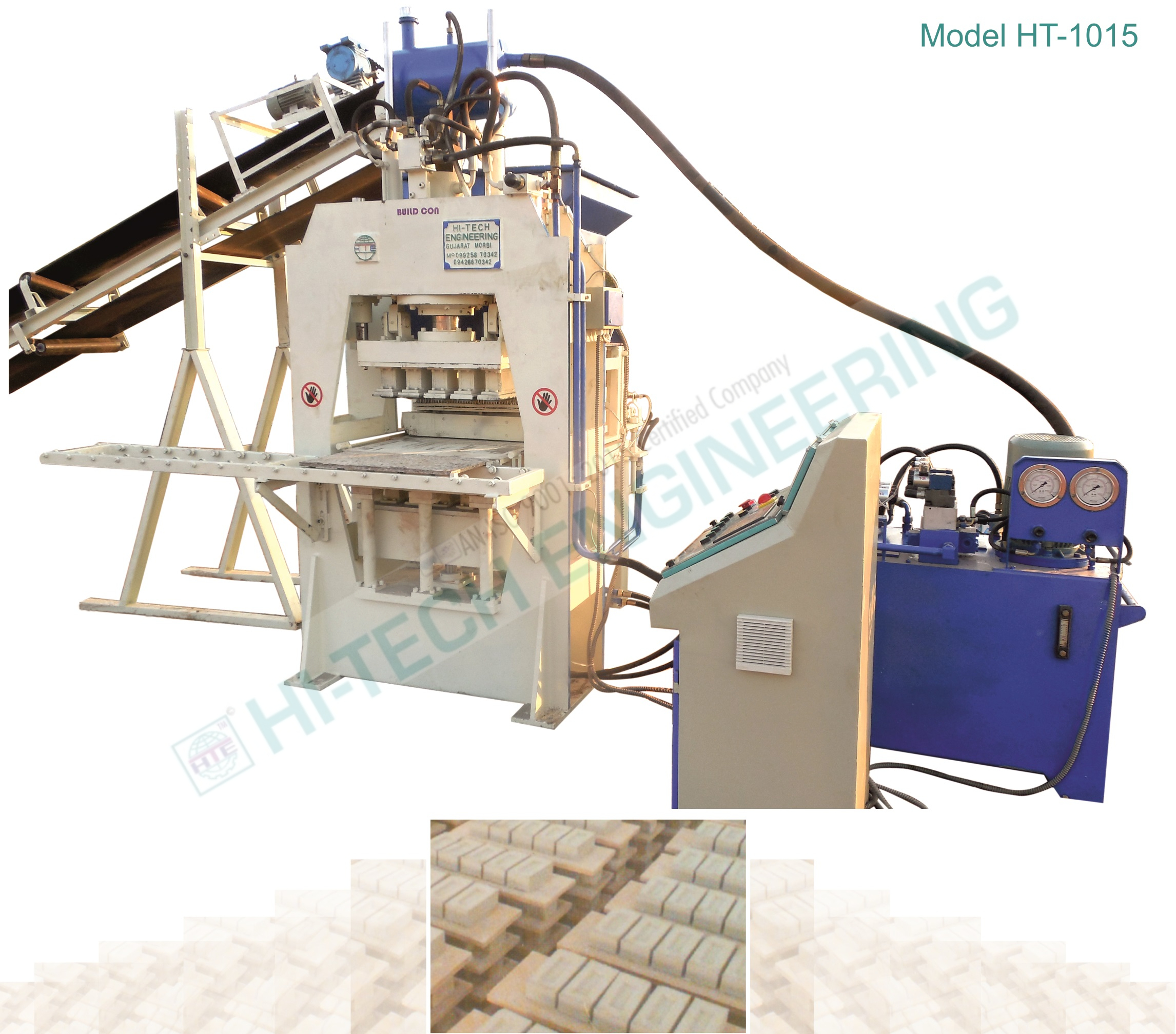

Fly Ash Brick Making Machine : Model HT-1015

High Pressure Tonnage: 80 MT Pressure, German Technology.
Total Power Require: 26.5HP, 19.88 KW, 3 Phases.
Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil.
Production Capacity per Shift 8 Hour: Bricks 12000 to 13000.
Bricks per Stock: 5 Bricks, 230 X 110 X 75mm or as per requirement.
System: Oil Chiller, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...
Pan Mixer: 6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit.
Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.
Automatic PLC:Fully Auto PLC operating all system & Warranted safety system with HMI Display.
Note: Specifications are subject to change for improvement.
