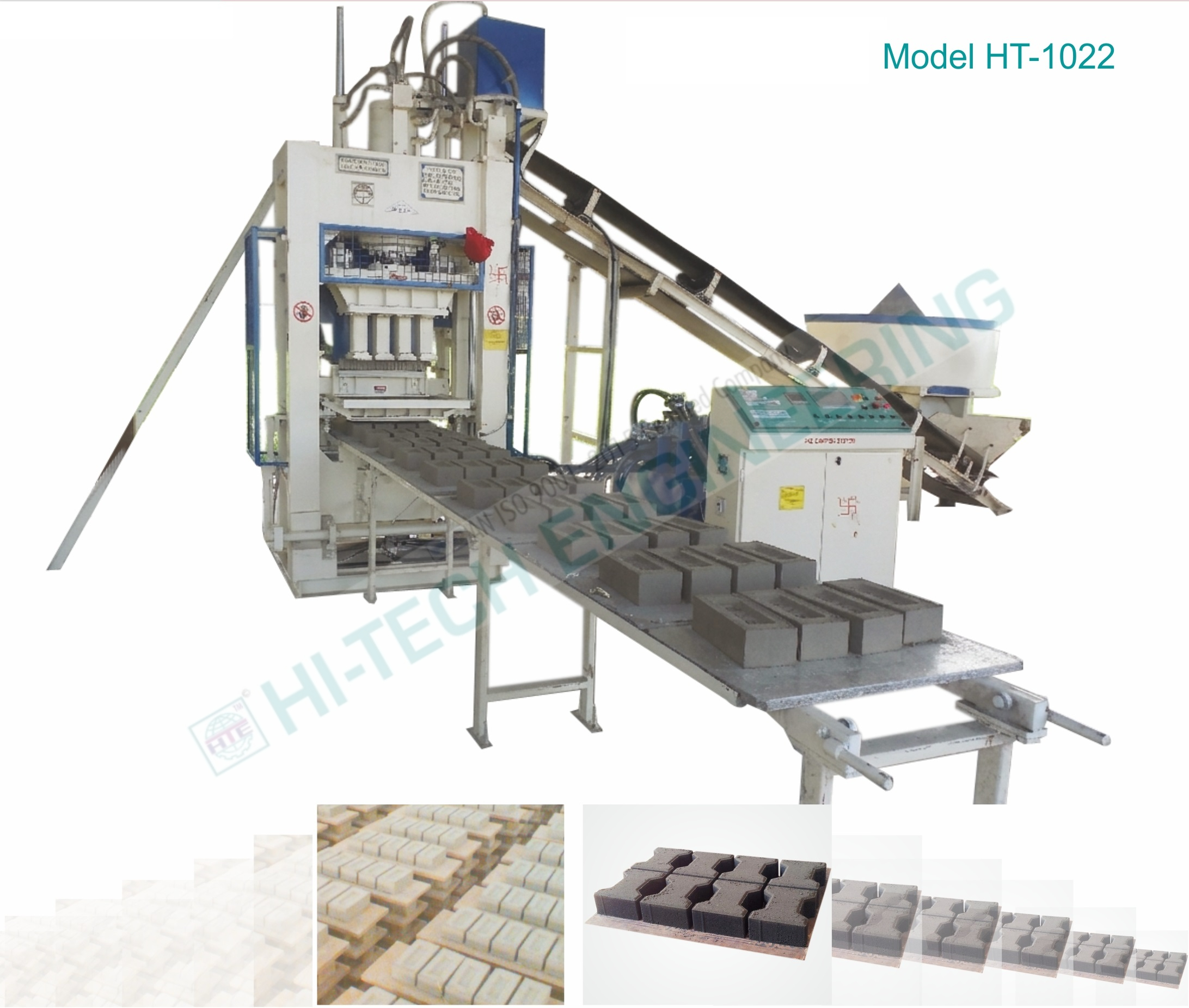

Fly Ash Brick Making Machine Model HT - 1022

Fly Ash Brick Making Machine Model HT - 1022

FULLY AUTOMATIC FLY ASH BRICKS MACHINE, AUTOMATIC FLY ASH BRICKS MACHINE, FLY ASH BRICKS MACHINE PRICE LIST, FLY ASH BRICKS MACHINE IN INDIA.

Specifications

  • High Pressure Tonnage: 80 MT + 2 HP Mould Vibro Pressure, German Technology.
  • Total Power Require: 22 HP, 16.5 KW, 3 Phases.
  • Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil,
  • Production Capacity per Shift 8 Hour: Bricks 7000 to 7500.
  • Bricks per Stock: 4 Bricks, 230 X 110 X 75mm or as per requirement.
  • System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...
  • Pan Mixer: 5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade, Powerful Worm Reduction Gear Box Transmission Unit.
  • Conveyor: Ft 18 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt.
  • Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
  • Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
  • Note: Specifications are subject to change for improvement.
