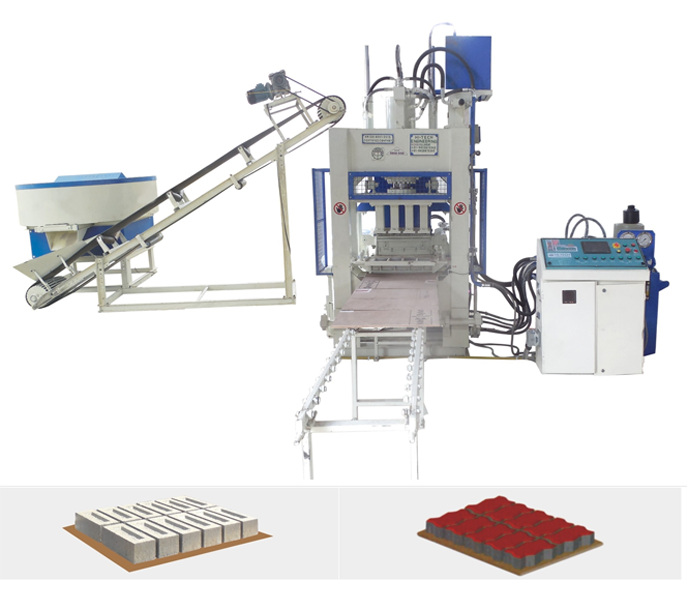

High Pressure Paver Block & Bricks Machine With Vibro
Paver Block Making Machine, Paver Making Machine, Hydraulic Paver Making Machine, Hydraulic Brick Making Machine, Hydraulic Fly Ash Brick Making Machine, Fly Ash Bricks Machine
Specifications
- High Pressure Tonnage: 80 MT + 2 HP Mould Vibro Pressure, German Technology.
- Total Power Require: 24 HP, 18 KW, 14.63 KW, 3 Phases.
- Oil Tank Capacity: 400 Liter, Grade 68 No. Hydraulic Oil,
- Production Capacity per Shift 8 Hour: Color Paver 3500 to 4000 / Bricks 7000 to 7500.
- Block per Stock: 3 Paver Block or depend on design / 4 Bricks, 230 X 110 X 75mm or as per requirement.
- System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...
- Auto Color Feeding: Auto Double Feeder Attachment for Top Layer, Color Paver.
- Pan Mixer: 5 Ft. 400 Kg Capacity, Heavy Duty (Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.
- Conveyor: Ft 18 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.
- Color Mixer (Drum Type): Color Mixer for Top Layer of Paver Blocks.
- Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
- Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
- Note: Specifications are subject to change for improvement.
