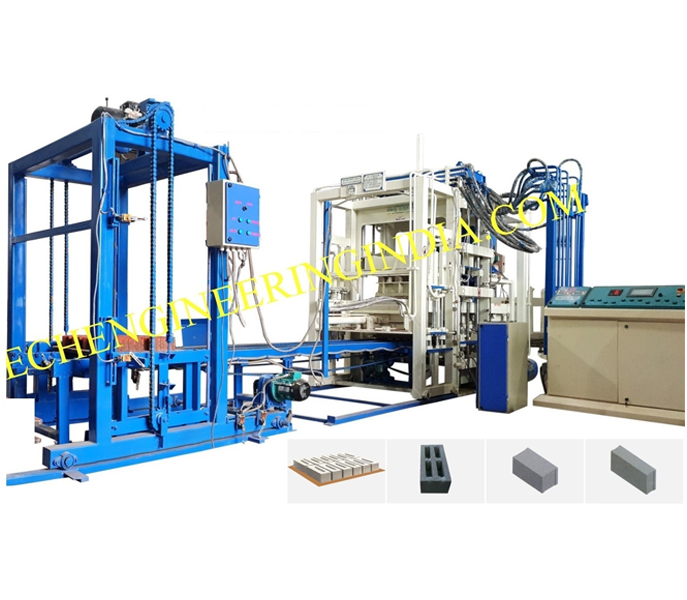

Vibro Press Machines Model HT

VIBRO PRESS MACHINE, VIBRO PRESS BLOCK MACHINE, VIBRO PRESS BRICK BLOCK MACHINE, AUTOMATIC VIBRO PRESS MACHINE.

Total Power Require: 41 HP, 20.75 KW, 3 Phases.
Oil Tank Capacity: 400 Liter, Standard Company, Grade 68 No. Hydraulic Oil.
Production Capacity per Shift 8 Hour: Bricks- 12000 to 12500, Solid or Hollow Block- 2500 to 3000, Plain Paver- 9000 to 10000.
Bricks per Stock: 8 Bricks 230 X 110 X 75mm or as per requirement.
Plain Paver Block per Stock: 6 Block or depend on design (Design as per requirement).
Solid & Hollow Block per Stock: 2 or 3 Block or depend on size (Size As per requirement).
Hi-Tech Vibro System: 10 HP.
Varam System: 1 HP.
Pallet Forwarding System: 1 HP
System Vibro, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc…
Pan Mixer: 6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade) Powerful Worm Reduction Gear Box Transmission Unit.
Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm (Dunlop or MRF Belt)
Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System. If Required
Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.

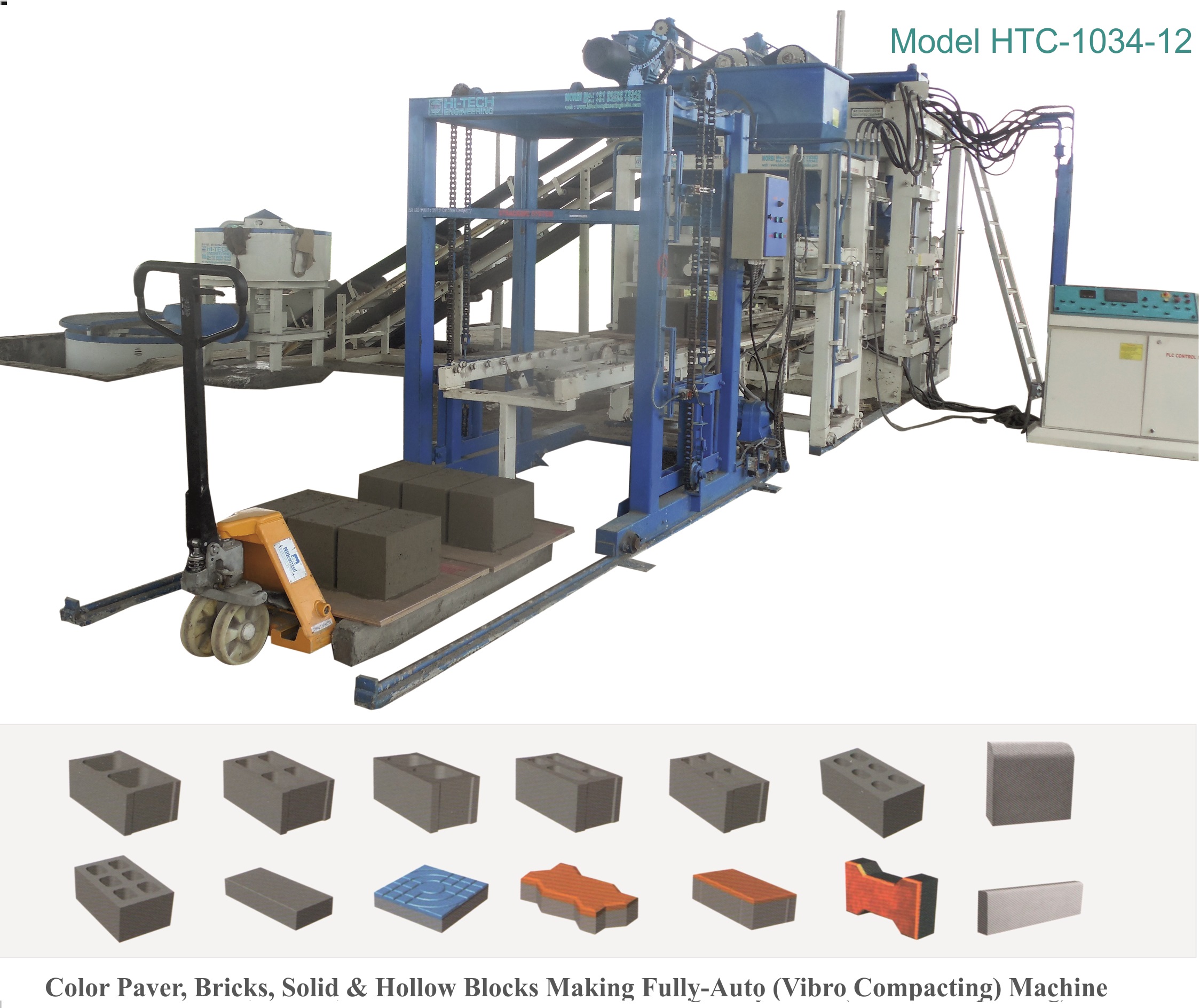

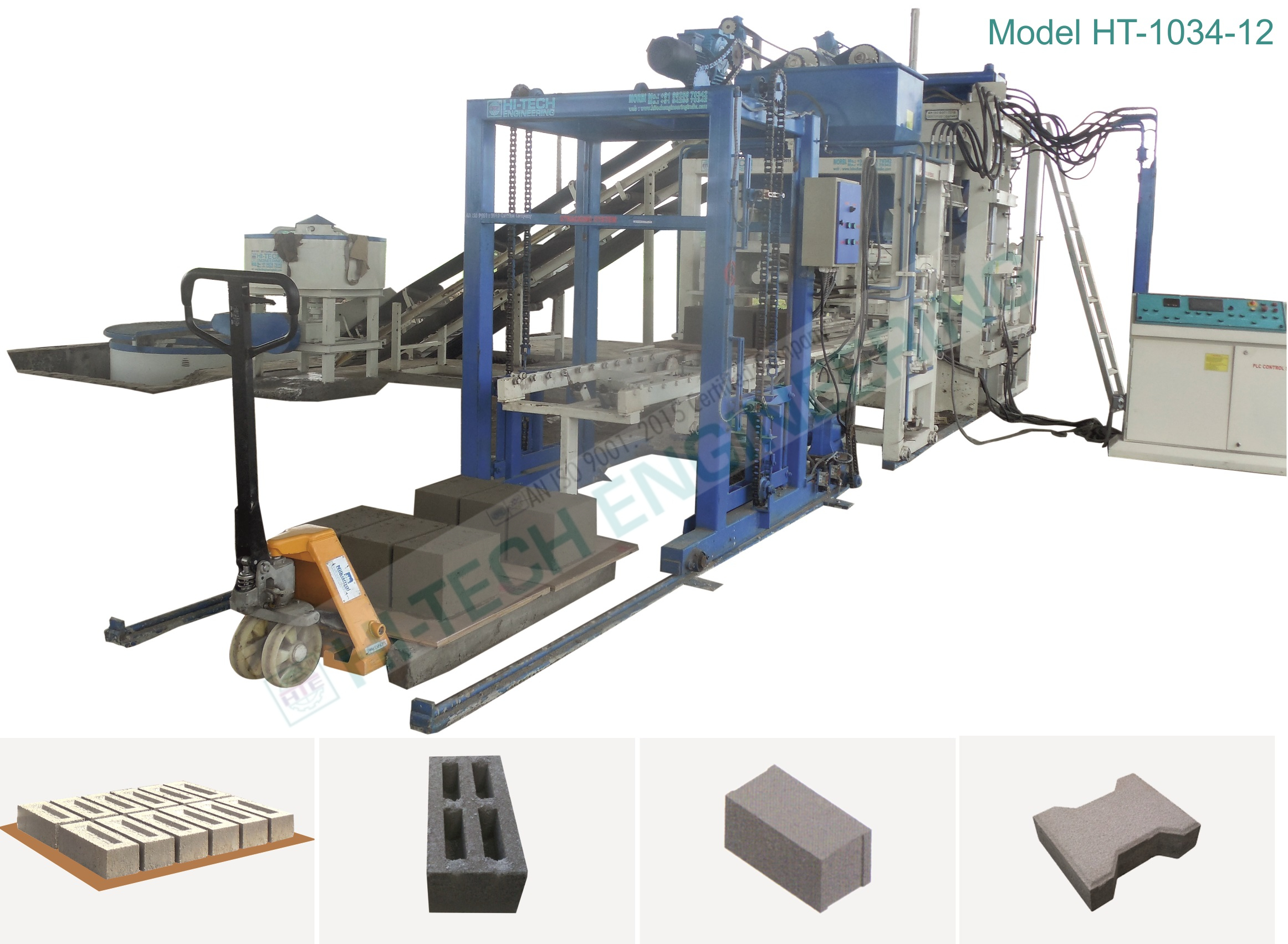

Vibro Press Machines Model HT - 1034-12
