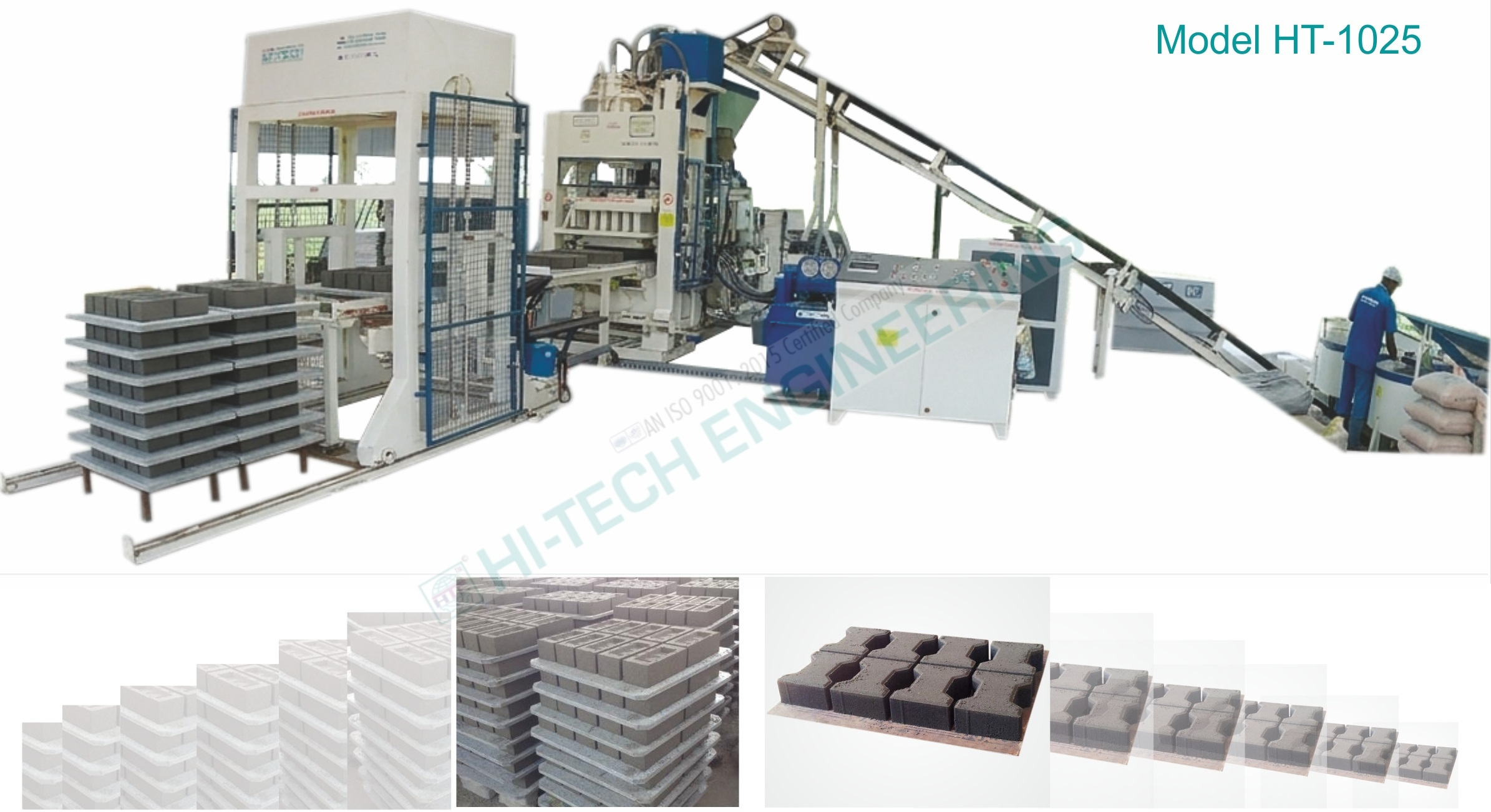

Fly Ash Brick Making Machine : Model HT-1025

High Pressure Tonnage: 150 MT + 4 HP Mould Vibro Pressure, German Technology.
Total Power Require: 47 HP, 35.25 KW, 3 Phases.
Oil Tank Capacity: 550 Liter, Grade 68 No. Hydraulic Oil,
Production Capacity per Shift 8 Hour: Bricks 19000 to 20000.
Bricks per Stock: 10 Bricks, 230 X 110 X 75mm or as per requirement.
System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...
Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.
Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop or MRF Belt.
Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.

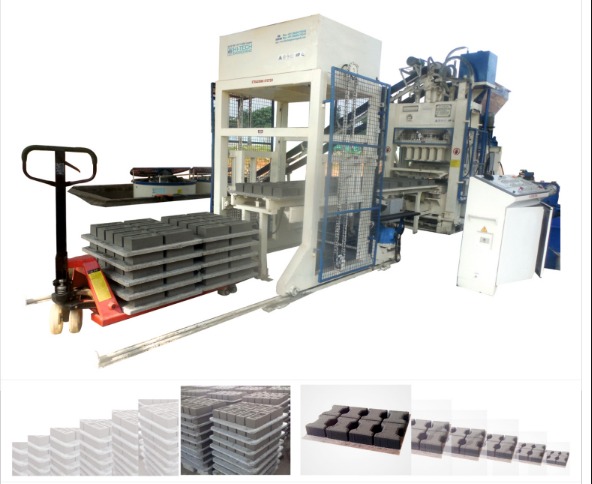

Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
Note: Specifications are subject to change for improvement.
