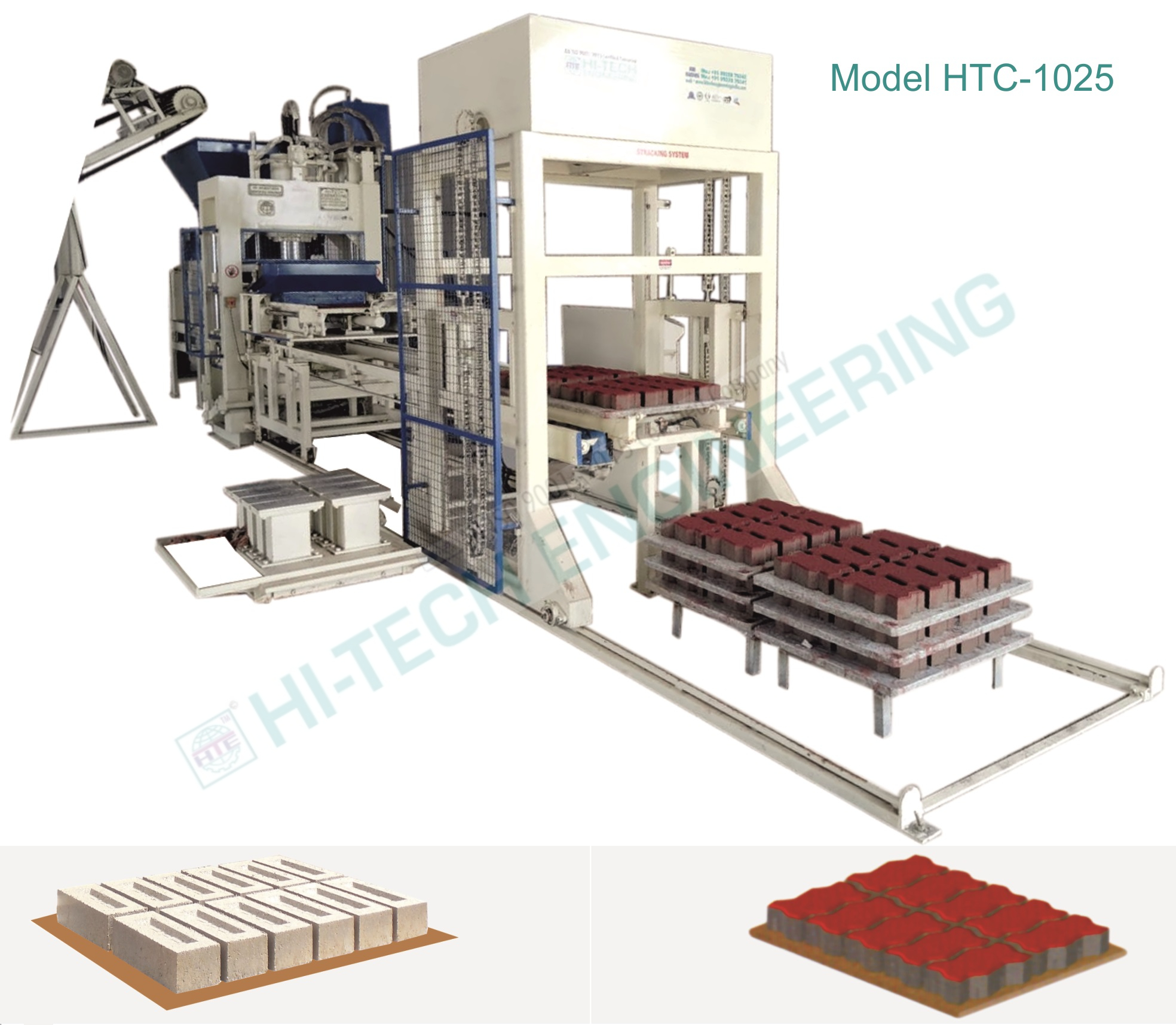

High Pressure Paver Block & Bricks Machine With Vibro Model HTC - 1025
AUTOMATIC PAVER BLOCK MAKING MACHINE, FULLY AUTOMATIC PAVER MAKING MACHINE, PAVER MAKING MACHINE IN INDIA, FLY ASH BRICKS PLANT, FLY ASH BRICKS PLANT IN INDIA, FULLY AUTOMATIC FLY ASH BRICKS PLANT, AUTOMATIC FLY ASH BRICKS MACHINE PRICE.
Specifications
- High Pressure Tonnage: 150 MT + 4 HP Mould Vibro Pressure, German Technology.
- Total Power Require: 50HP, 37.5 KW, 3 Phases.
- Oil Tank Capacity: 550 Liter, Grade 68 No. Hydraulic Oil,
- Production Capacity per Shift 8 Hour: Color Paver 8500 to 9500, Bricks 19000 to 20000.
- Bricks per Stock: 8 Paver Block or depend on design, 10 Bricks 230 X 110 X 75mm or as per requirement.
- System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...
- Auto Color Feeding: For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System.
- Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.
- Conveyor: Color Mixing for Top Layer of Paver Blocks.
- Color Mixer (Drum Type): Color Mixing for Top Layer of Paver Blocks.
- Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.
- Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
- Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
- Note: Specifications are subject to change for improvement.
