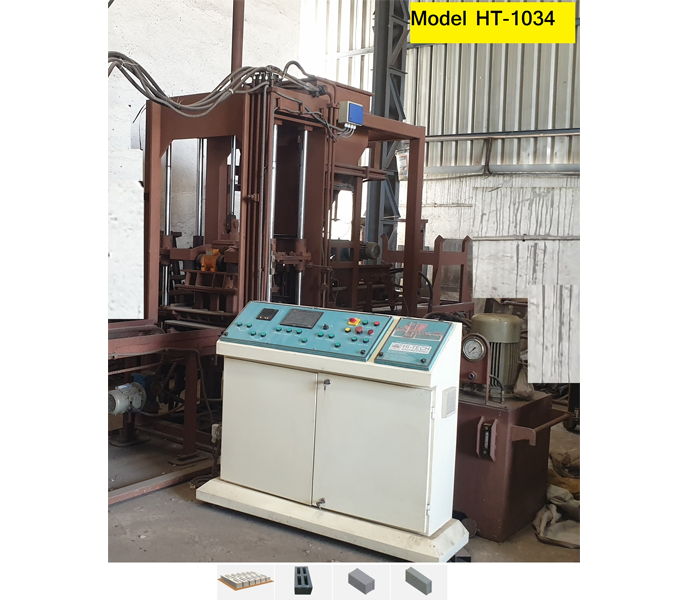

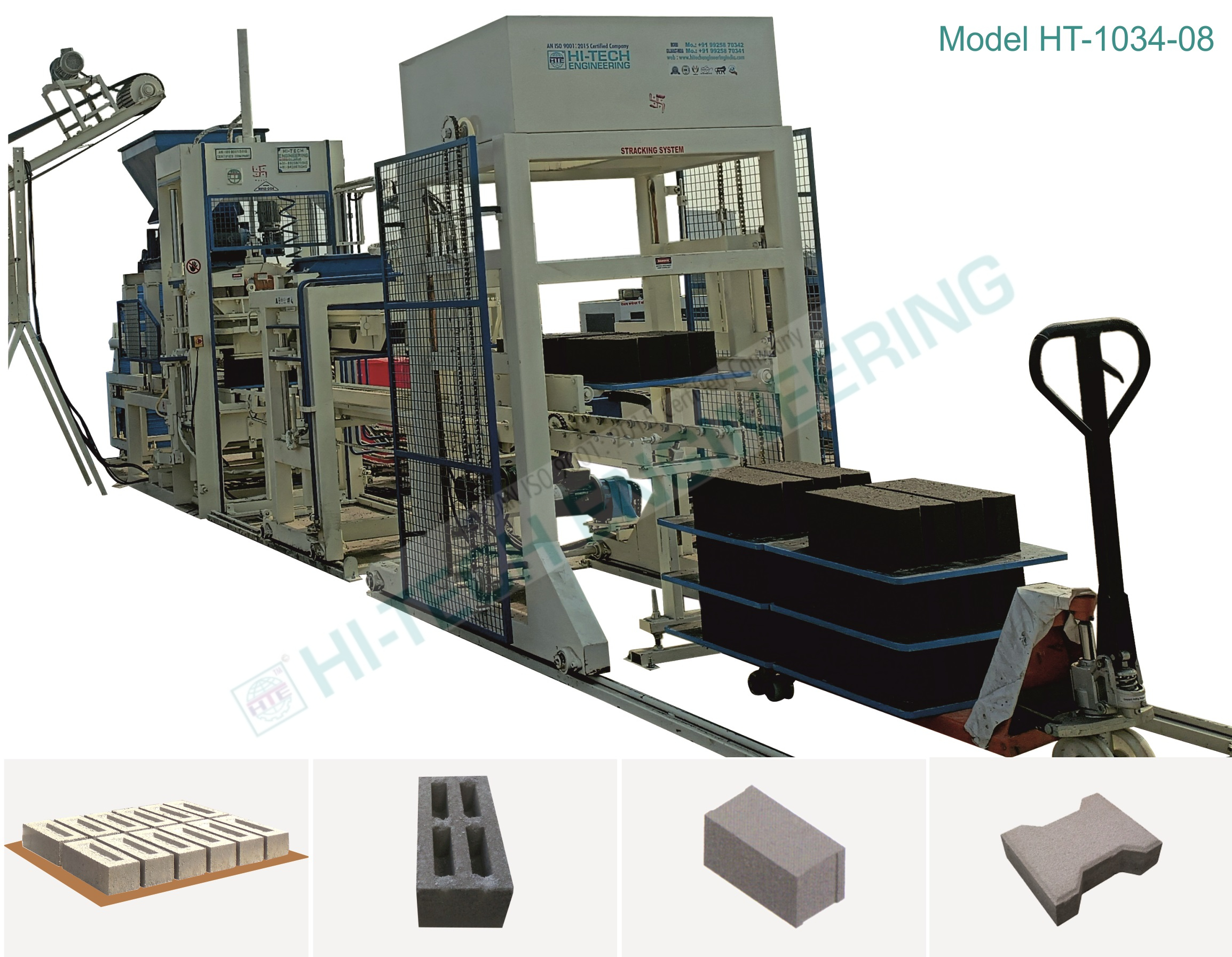

Vibro Press Machines Model HT - 1034-8
Vibro Press Machine, Vibro Press Block Machine, Vibro Press Brick Block Machine, Automatic Vibro Press Machine, Aly Ash Block Making Machine, Cement Concrete Block Making Machine, Concrete Block Maker Machine.
Specifications
- Total Power Require: 41 HP, 20.75 KW, 3 Phases.
- Oil Tank Capacity: 400 Liter, Standard Company, Grade 68 No. Hydraulic Oil.
- Production Capacity per Shift 8 Hour: Bricks- 12000 to 12500, Solid or Hollow Block- 2500 to 3000, Plain Paver- 9000 to 10000.
- Bricks per Stock: 8 Bricks 230 X 110 X 75mm or as per requirement.
- Plain Paver Block per Stock: 6 Block or depend on design (Design as per requirement).
- Solid & Hollow Block per Stock: 2 or 3 Block or depend on size (Size As per requirement).
- Hi-Tech Vibro System: 10 HP.
- Varam System: 1 HP.
- Pallet Forwarding System: 1 HP
- System Vibro, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc…
- Pan Mixer: 6 Ft. 600 Kg Capacity, Heavy Duty, Roller & Blade) Powerful Worm Reduction Gear Box Transmission Unit.
- Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm (Dunlop or MRF Belt)
- Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
- Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System. If Required
- Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.
