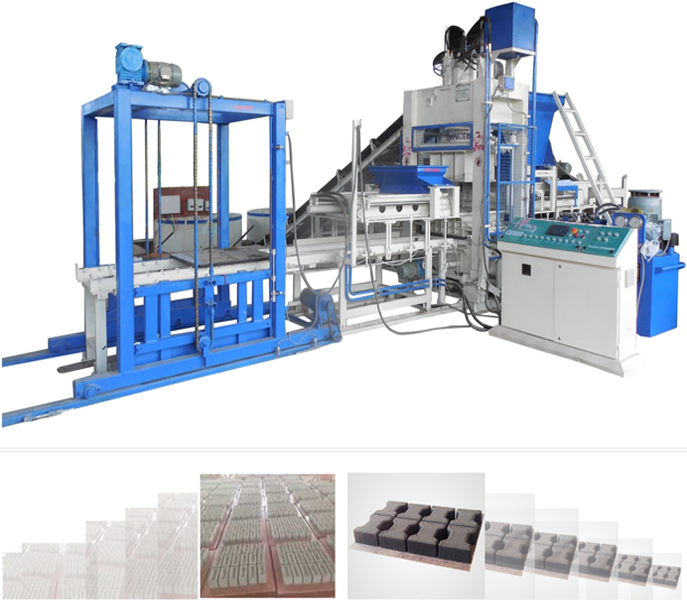

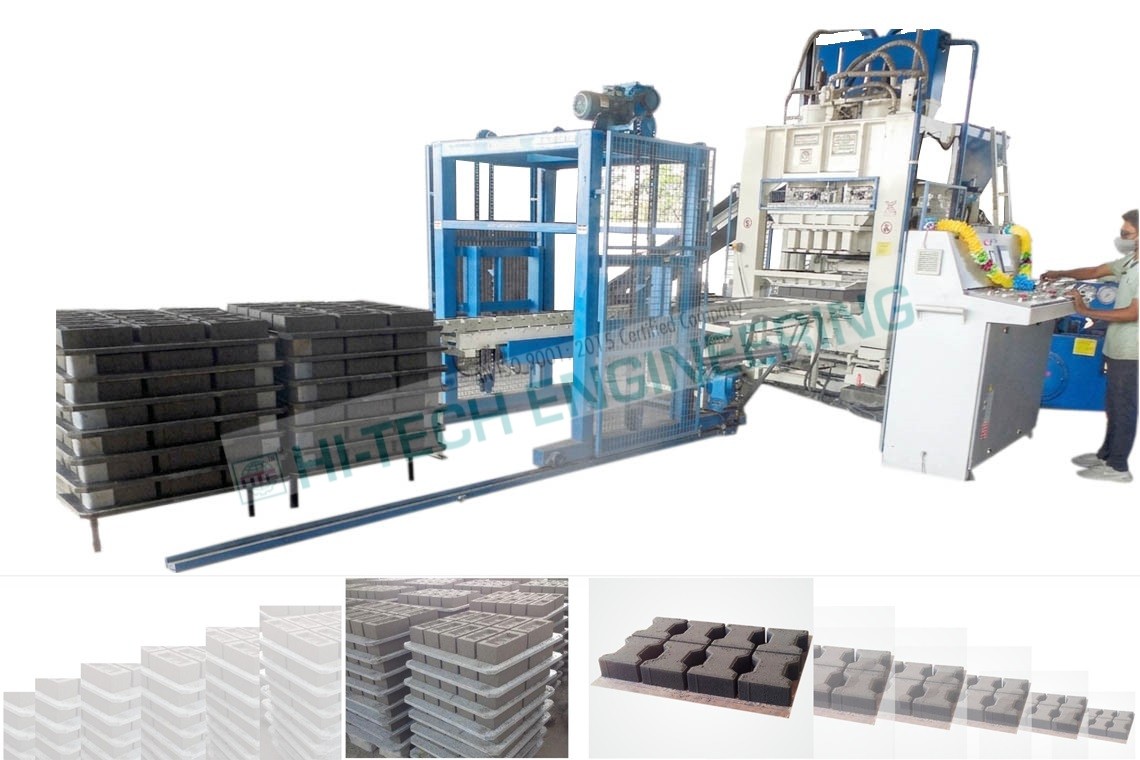

Fly Ash Brick Making Machine Model HT - 1029
FLY ASH BRICK MAKING PLANT, FULLY AUTOMATIC CEMENT BRICK MAKING MACHINE, SOLID BRICK MAKING MACHINE, CEMENT BRICKS MANUFACTURING MACHINE, AUTOMATIC CEMENT BRICK MAKING MACHINE, CEMENT BRICKS MAKING MACHINE, CONCRETE BRICK MAKING MACHINE PRICE, AUTOMATIC CEMENT BRICK MAKING MACHINE, CONCRETE BRICK MACHINE.
Specifications
- High Pressure Tonnage: 300 MT + 6 HP Mould Vibro Pressure, German Technology.
- Total Power Require: 79 HP, 59.25 KW, 3 Phases.
- Oil Tank Capacity: 650 Liters, Standard Company Grade 68 No. Hydraulic Oil.
- Production Capacity per Shift 8 Hour: Bricks 28000 to 30000.
- Bricks per Stock: 18 Bricks, 230 X 110 X 75mm or Size as per requirement.
- System: Vibro with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc…
- Pan Mixer: 2 Nos. (7 Ft 1200 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.
- Conveyor: Ft 30 X Width 24 Inch X Thickness 8mm (Dunlop or MRF Belt).
- Auto Pallet Stacker (Gear Type): For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System.
- Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
- Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.
