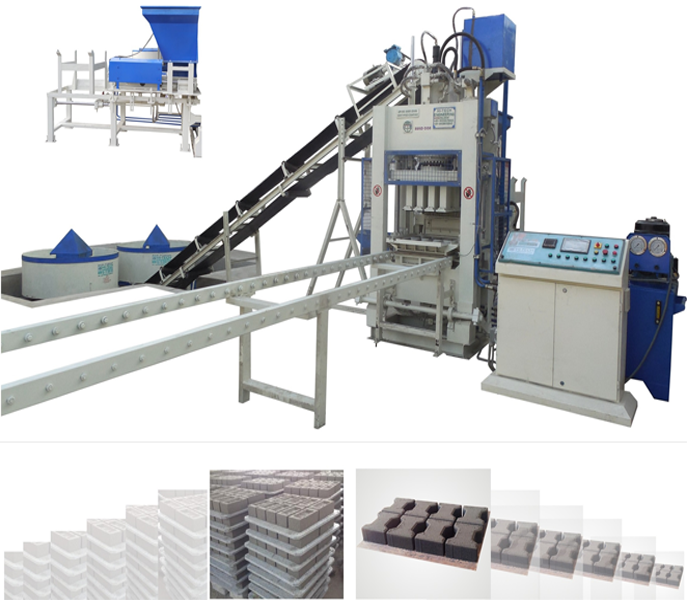

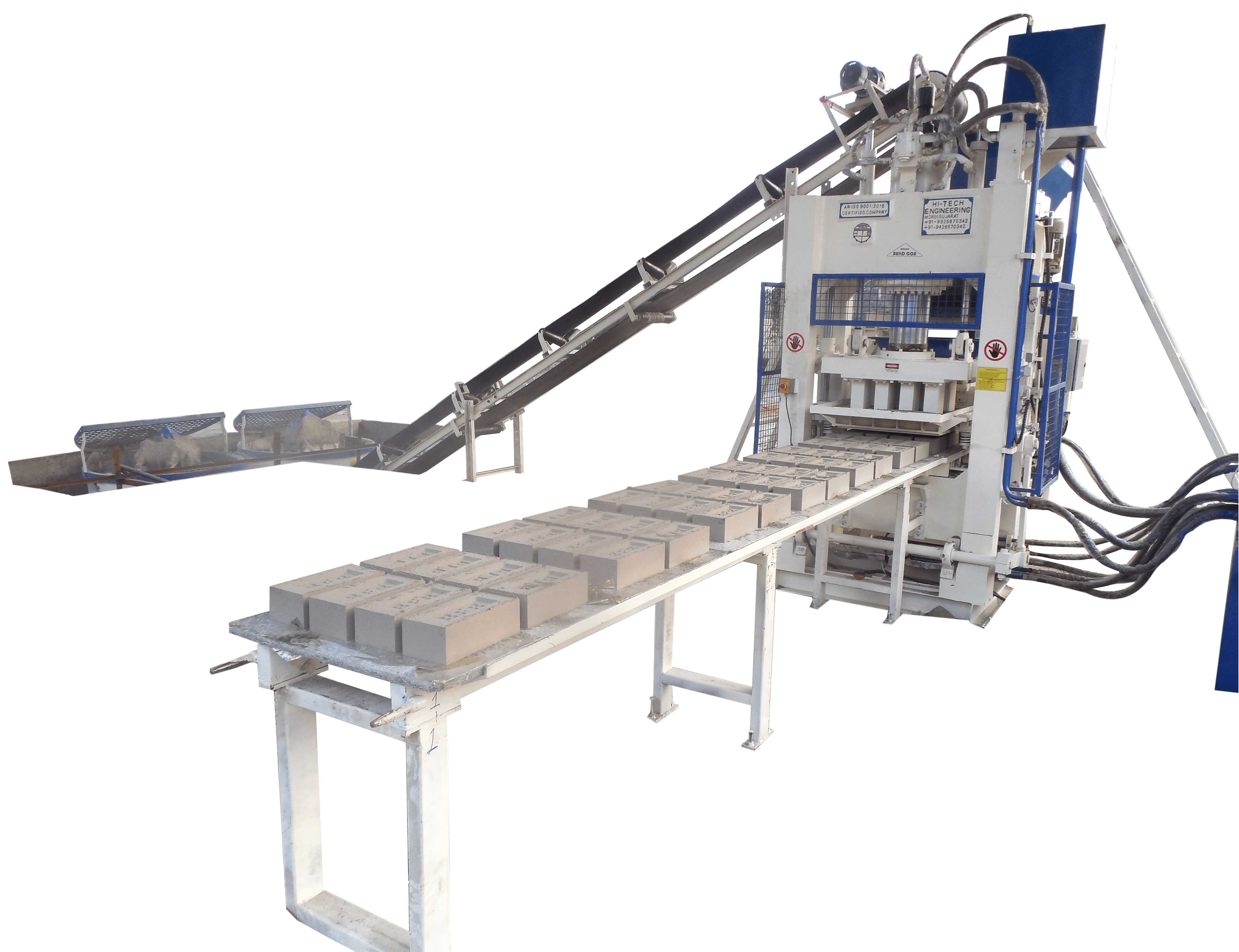

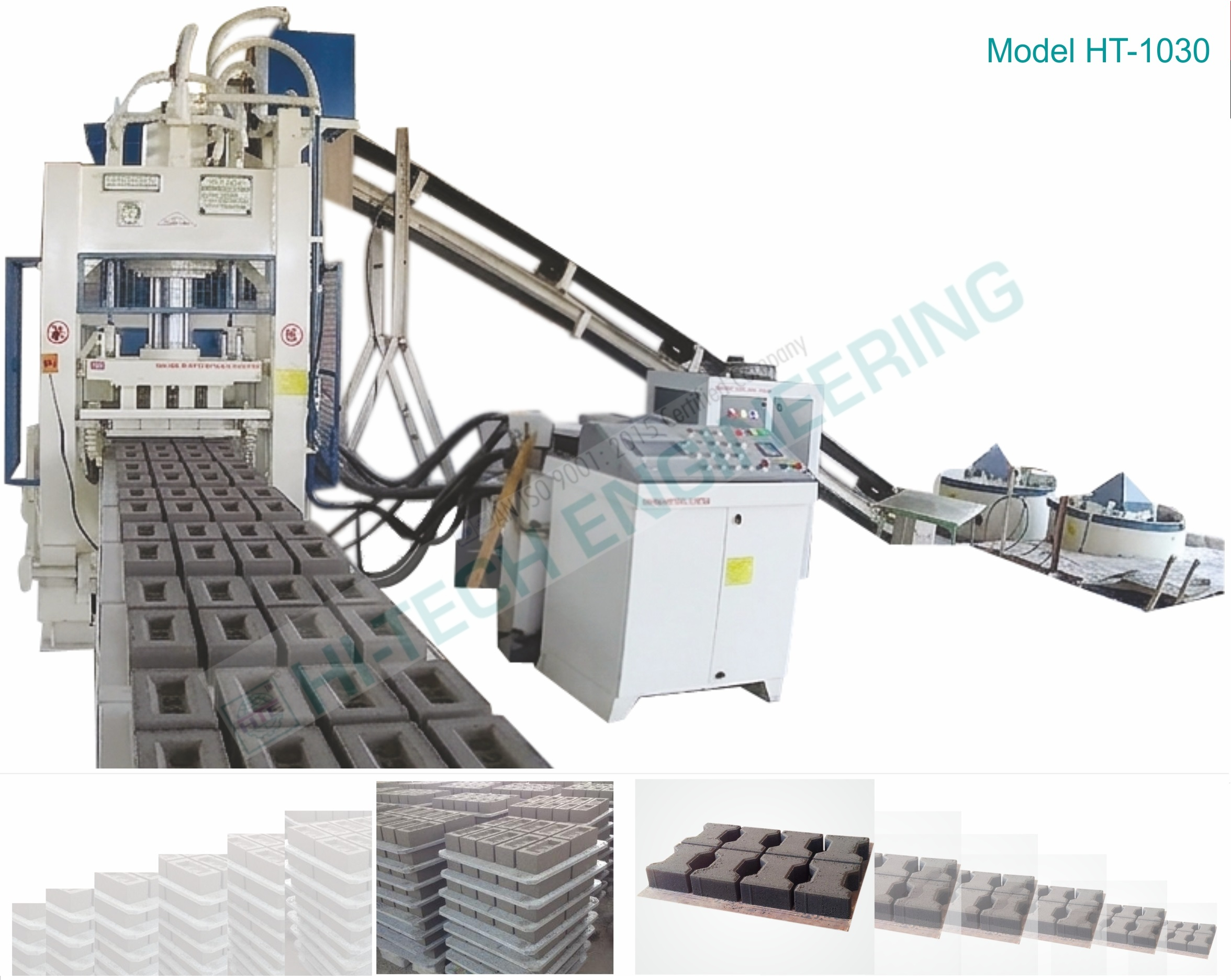

Fly Ash Brick Making Machine Model HT - 1030
CEMENT BRICKS MANUFACTURING MACHINE, AUTOMATIC CEMENT BRICK MAKING MACHINE, CEMENT BRICKS MAKING MACHINE, CONCRETE BRICK MAKING MACHINE PRICE, AUTOMATIC CEMENT BRICK MAKING MACHINE, CONCRETE BRICK MACHINE.
Specifications
- High Pressure Tonnage: 125 MT + 4 HP Mould Vibro Pressure, German Technology.
- Total Power Require: 37HP, 27.75 KW, 3 Phases.
- Oil Tank Capacity: 500 Liters, Grade 68 No. Hydraulic Oil
- Production Capacity per Shift 8 Hour: Bricks 15000 to 16000.
- Bricks per Stock: 8 Bricks, 230 X 110 X 75mm or Size as per requirement.
- System: Vibration with pressure, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc...
- Pan Mixer: 2 Nos. (5 Ft. 400 Kg Capacity, Heavy Duty, Roller & Blade), Powerful Worm Reduction Gear Box Transmission Unit.
- Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm, Dunlop/MRF Belt.
- Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
- Automatic PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
- Note: Specifications are subject to change for improvement.
